dsh-file-explorer-preview-sequence

中文 | English

A DSH Web plugin that adds a SeqViz sequence viewer to dsh-file-explorer, overriding its plain-text previews for FASTA, GenBank, JBEI, SnapGene, and SBOL files.

Select a .gb / .fasta (or any supported format below) in the file explorer and the preview panel renders an interactive sequence viewer instead of raw text.

Screenshots

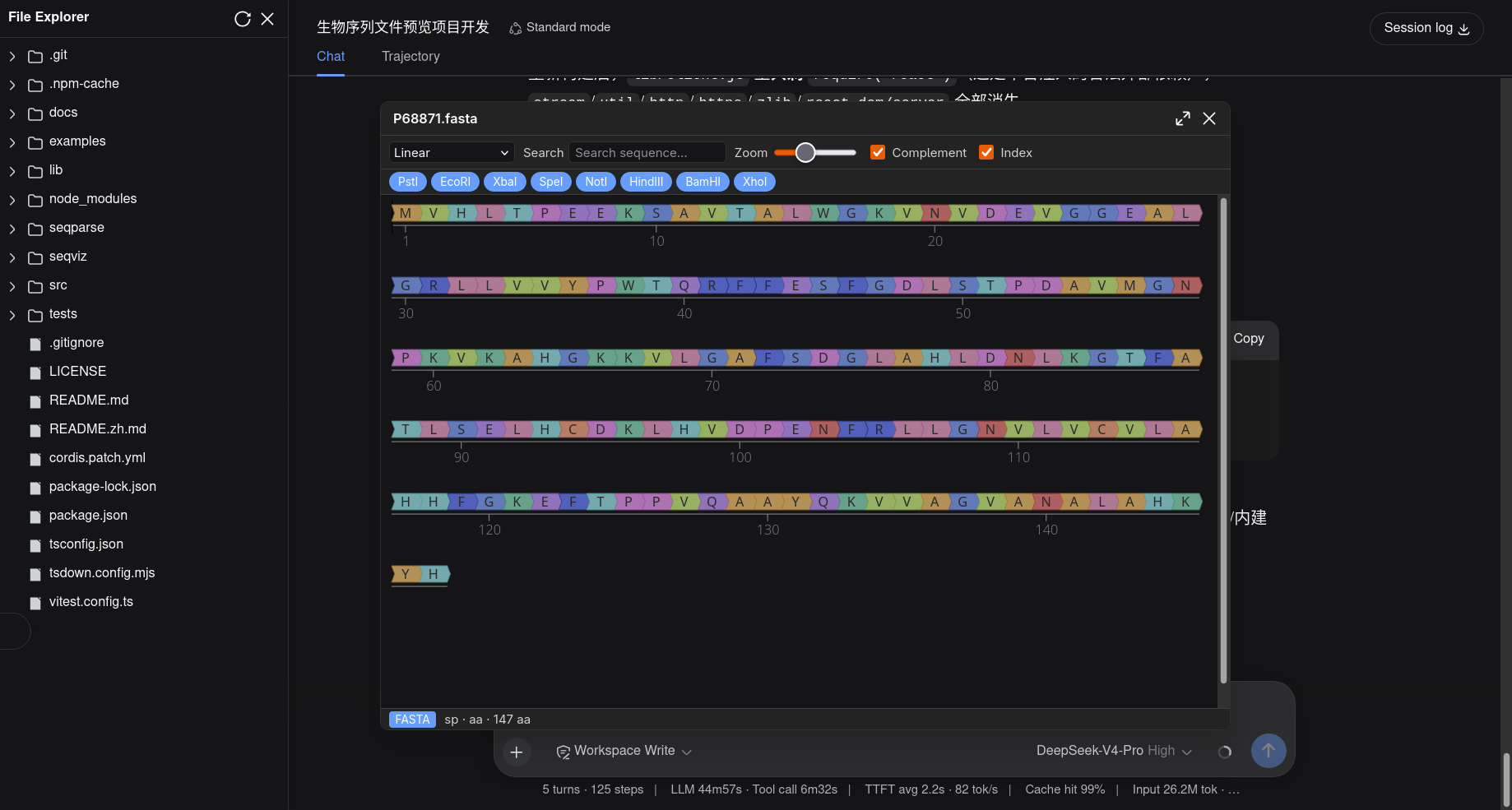

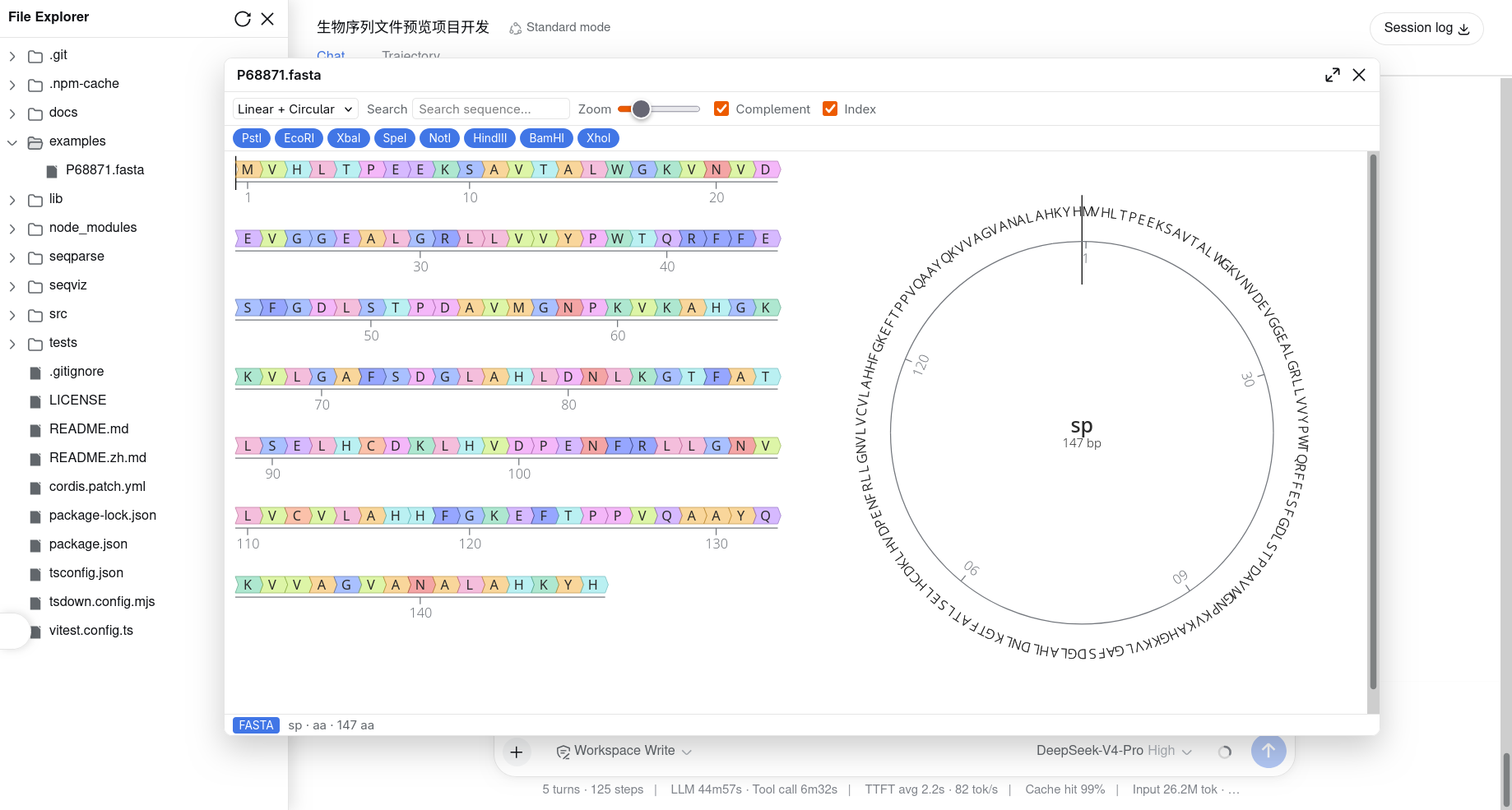

Dark theme	Light theme

Features

• Interactive viewer built on seqviz (<SeqViz>), with parsing by seqparse.
• Topologies: circular / linear / both / both-flip.
• Feature annotations with colors, search with highlight, enzyme cut sites, complement & index toggles, and linear zoom.
• Status bar with the format badge, name, sequence type, and length.
• Localized toolbar/status copy (中文 / English).
• Dark/light aware: follows DSH's data-ds-dark-theme.

Supported formats

Install

From the Git repository

dsh plugin --profile web add github:wolfsonliu/dsh-file-explorer-preview-sequence
dsh web

From source

git clone https://github.com/wolfsonliu/dsh-file-explorer-preview-sequence
cd dsh-file-explorer-preview-sequence
npm install
npm run build
dsh plugin --profile web add .
dsh web

Dependencies

This plugin requires @dsh-external/dsh-file-explorer (v0.1.0+) — it injects the fileExplorer cordis service (registerPreview / writeFile / readRawFile). Install and enable dsh-file-explorer before this plugin:

# install the core from git
dsh plugin --profile web add github:wolfsonliu/dsh-file-explorer

# or, from source
git clone https://github.com/wolfsonliu/dsh-file-explorer
cd dsh-file-explorer
npm install && npm run build
dsh plugin --profile web add .

For local development, this repo's devDependencies resolves @dsh-external/dsh-file-explorer's ./client type definitions. Point it at your checkout or your registry's published package before npm install.

For files ≤ 2 MiB the plugin parses the text preview content directly. SnapGene .dna (binary) and files larger than 2 MiB are handled via readRawFile (available in dsh-file-explorer v0.1.0+). When readRawFile is absent (older core versions), the plugin degrades gracefully: text formats ≤ 2 MiB still preview, .dna and larger files show an unsupported status.

Limitations

• Read-only preview (no editing).
• SnapGene .dna and > 2 MiB files require dsh-file-explorer v0.1.0+ (older versions degrade gracefully).
• .xml and .seq are ambiguous extensions; files in those extensions that aren't SBOL / JBEI fall back to a plain-text view.

Development

npm run check   # tsc type check
npm test        # vitest unit tests
npm run build   # tsc + tsdown (single-file lib/client.js bundling seqviz + seqparse)

The real SeqViz canvas cannot run under jsdom; verify it with dsh web and a sequence file in examples/.

After npm run build, hard-refresh the browser (Ctrl/Cmd+Shift+R): dsh web may keep serving a cached plugin bundle, so a soft reload can leave your latest build unused.

License

MIT
